Name: 1 ohm 25 watt 100W 50w resistance 10RJ RXG24 RX24
Brand: BONENS
Price: 1 USD

Brand Name : BONENS

Model Number : RX24

Place of Origin : China

Rated Power : 25W

Operating voltage range : <1.5kV

Rated resistance range : 0.1Ω~10KΩ

Maximum withstand voltage : 3000V

Temperature drift range : ≤400ppm/℃

Working temperature range : -55℃～+275℃

Contact Now

Product Description

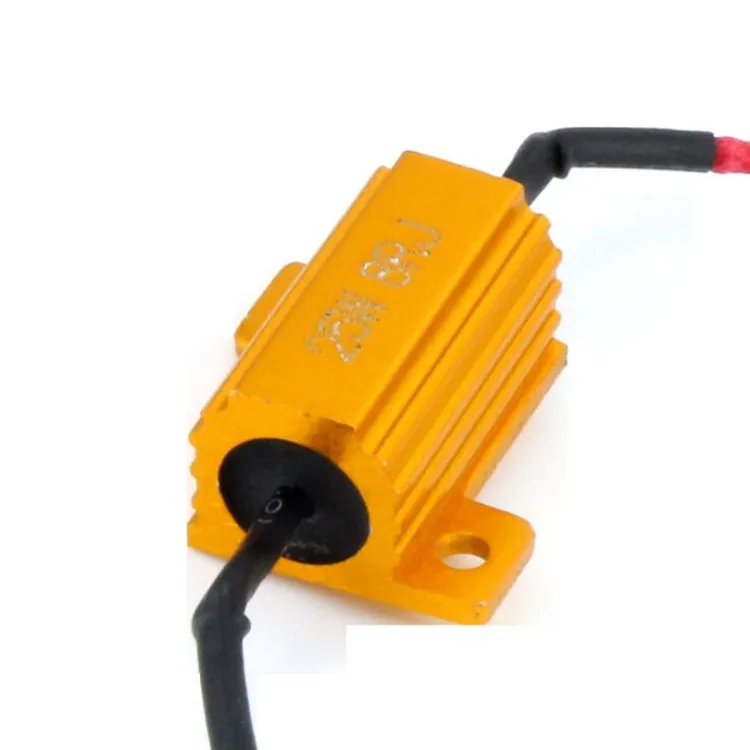

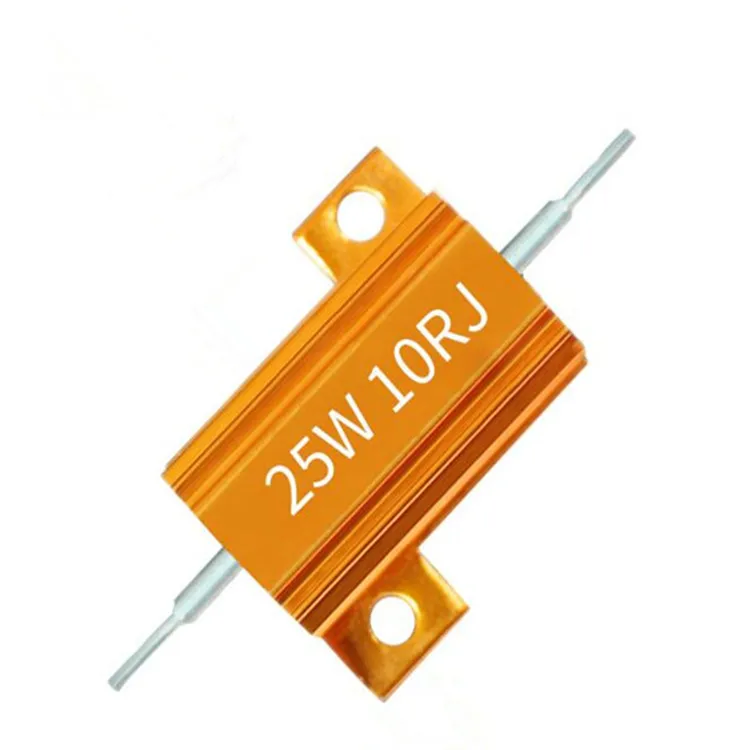

1 ohm 25 watt resistance Picture

100W resistor also can make threaded type

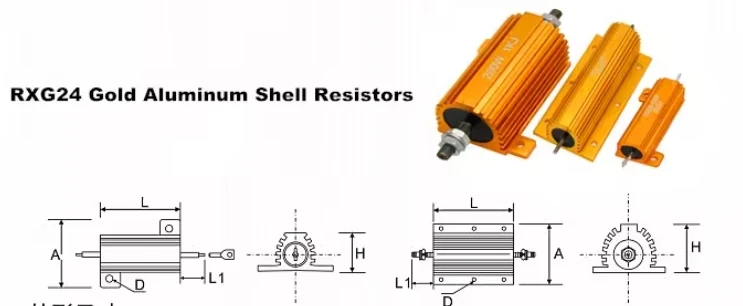

Shape Drawing

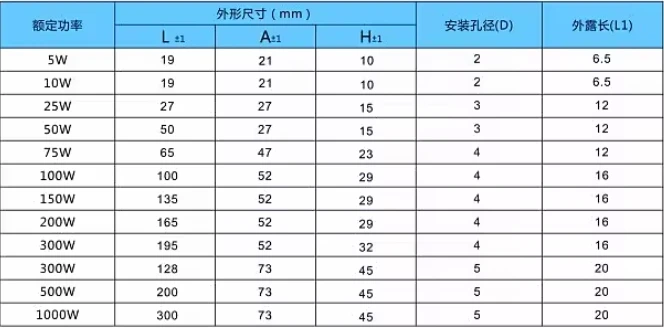

RoHs power disspation wirewound resistor 100w aluminium Size

Specification

RoHs power disspation wirewound resistor 100w aluminium Parameter

Test items	Standard	Test Methods
Short time overload	±5%,±2%,±1%	2.5 times power/5 seconds
Temperature coefficient	±200PPM/°C	Test temperature:indoors temp.100°C
Resistance to solder heat	±1%	Solder temp:350±10°C time:3 seconds
Dielectric withstanding voltage	No breakdown or flashover	500V for 60 seconds
Humidity Load Life	±0.5%	1.5hr ON,0.5hr OFF at 40±2°C,90-95&RH for 1000hrs
Load Life	±2.0%	Rated voltage 1.5hrON,0.5hr OFF at 25°C for 1000hrs
Solderability	At least 95% coerage	235±5°C for 2±0.5 seconds

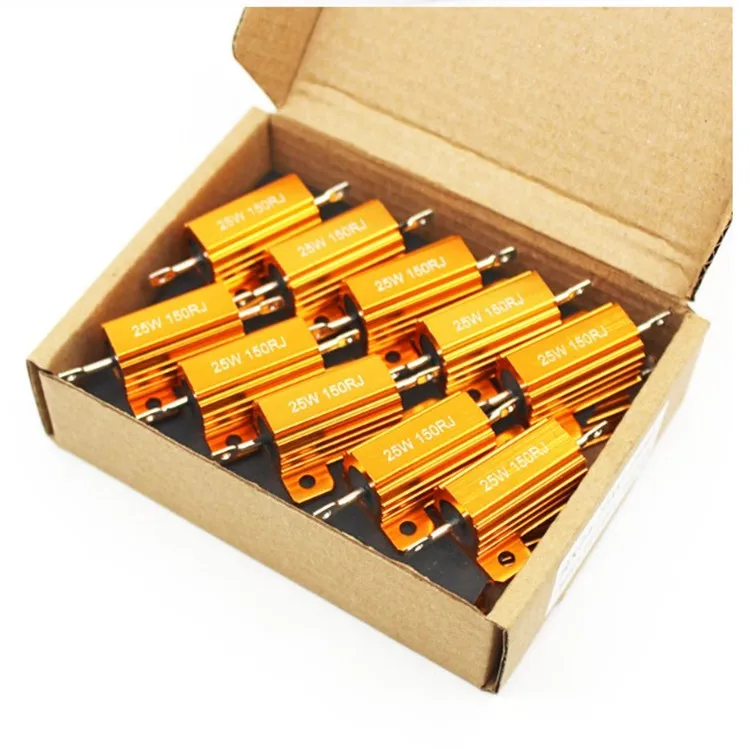

Packing & Delivery

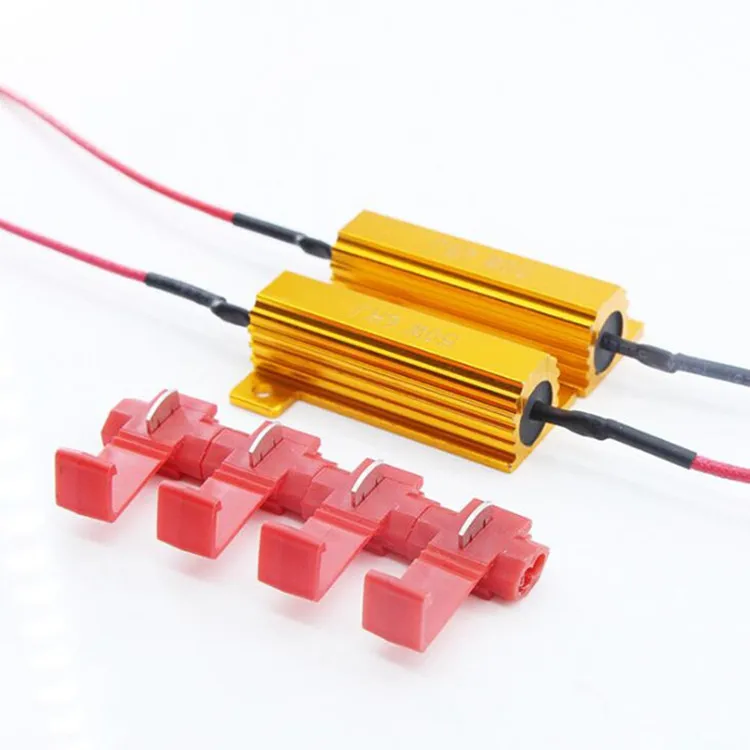

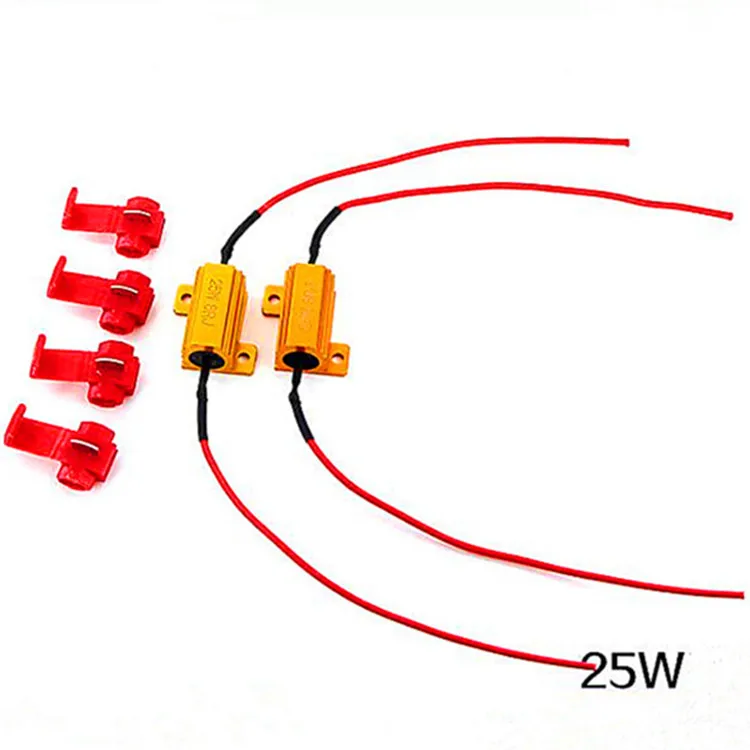

1 ohm 25 watt 100W 50w resistance 10RJ RXG24 RX24 Images
